DIAMOND-SERIES

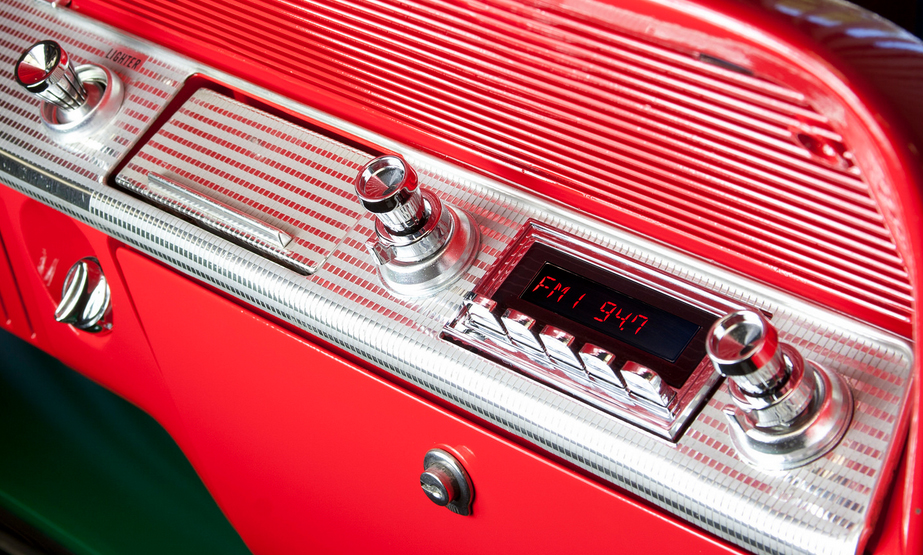

~ RetroSound® Motor-7 with RetroRadio® Display (Customized by Classic Auto Sound)
The RetroSound® Motor-7 features built-in Bluetooth® connectivity for hands-free phone calls and wireless audio streaming, including wireless browsing from any Android®-based phone. San Diego features a 32,000 color display to customize your radio to your vehicle's interior. 1 x USB port for USB flash drives loaded with MP3 or WMA files plus 1 x standard auxiliary inputs are provided.
The Motor-7 has a built-in 25 watts x 4 channel power RMS MOSFET amplifier as well as front and rear RCA pre-outs to add external amplifiers. It mounts seamlessly into your dash thanks to RetroSound®'s patented InfiniMount adjustable bracket system.
All Classic Auto Sound radios are fully bench assembled for your convenience and only require minor adjustment for installation into your vehicle.
Features
- Built-in DAB/DAB+ tuner (Optional DAB antenna adatper available)
- Built-in Bluetooth® connectivity
- Wireless streaming and wireless browsing with any iPhone or Android® phone
- 1 x rear-mounted USB port for SB flash drive
- MP3, WMA and FLAC lossless playback through USB
- 32,000 color display
- Authentic push-button styling
- Improved AM/FM RDS tuner with 30 pre-sets
- 1 x Auxiliary input for portable devices
- 25 watts x 4 channel RMS power amplifier
- Dual RCA pre-outs for external amplifiers
- Patented InfiniMount adjustable shaft system
- Body can be mounted remotely for custom installation using optional extension cable
- Works seamlessly with any of the RetroSound® range of external amplifiers
Specifications
FM |
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) - Plus DAB+ Tuner | 87.5-107.9MHz |
| Antenna Terminal | External Antenna Connector |
| Usable Sensitivity | 12.5 dBf |
| Selectivity | 75 dB @ 400kHz |
| Signal to Noise Ratio | 62 dB (Stereo), 67 dB (mono) |
| Harmonic Distortion @ 1 kHz | 0.8% (stereo), 0.5% (mono) |
| Separation | 32 dB @ 1kHz |
| Frequency Response | 30-16,000 Hz |
|
|
| Tuning Range (USA, EUR, AUS, JAP, RUS tuning capable) | 530-1710 kHz |
| Antenna Terminal | External Antenna Connector |
|
|
| Dimensions (radio face & push-buttons only) | 3.5”W x 1.5” H x 1.05” D |
| Dimensions (radio body) | 3.96”W x 1.98”H x 4.30”D |
| Power Requirements | 10.5-14.4 volts |
| Current Consumption (during operation) | Max. 15A |
| Current Consumption (car off) | <3.5 ma="" td=""> |
| Output Power (@ 14.4 volts @ 4 ohm @ 1% THD) | 25x4 watts RMS 45x4 Max Power |
| Output Impedance | 4-8ohm |
| Low Level Output (4 channels) | 2.85 volts |
| AUX 1 Input (AUX cable length, 8”) | >300 mV / 6 kΩ |
| AUX 2 Input (AUX cable length, 8”) | >300 mV / 6 kΩ |
| USB Input (USB cable length, 40”) | 5V (USB female input) |
