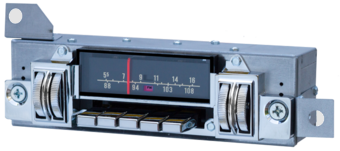

AAR-SERIES BLUETOOTH AM/FM RADIO CONVERSION : 1968-70 PLYMOUTH VALIANT (WITH RALLYE DASH)

The AAR-Series radio has the exact look and feel of the original radio, but with the performance you expect from today's technology.

Inside the case is a proven digital tuner system with a 180 watt RMS power amplifier! The radio has inputs for iPod, MP3 or satellite radios. Two powerful microprocessors monitor the control knobs and buttons to make the radio dial imitate the original while pumping out a sound that is cleaner and much more powerful than any radio that was available when your classic was new.

IMPORTANT NOTE : These radios are made-to-order with an expected manufacturing lead-time of 10-14 weeks.

RADIO FEATURES:

• Small size, BIG features!
• Looks original but offers today's technology.
• Shallow case depth allows room for electric wipers & air conditioning.
• AM dial scale in foreground looks original - FM dial scale in background.
• Analog controls look and feel like the original radio.
• All controls easily accessible. Volume, bass, treble, balance, fader and tuning from original-looking controls.
• LED dial lights will never need replacing.
• Digitally tuned AM/FM Stereo front end provides stable, high quality reception.
• 11.5 - 16.0 Volts DC negative ground input only.
• Maximum power = 180 watts RMS (45 watts x 4 speakers 4Ω, 14.4V, 1kHz)
• Do not use original speakers.
• Uses original antenna.
• Sensitivity (FM S/N 30dB) typ 5 dBµ, (AM S/N 20dB) typ 29 dBµ.
• 10 presets (5 AM, 5FM)
• Digitally tuned receiver with analog display.
• Dimensions: 9" W x 3.25" H x 4.6" D. Depth behind dash is 3.25" at shafts.
• Auxiliary inputs (RCA jacks). Standard (Motorola) antenna jack.
• ½" D shafts on controls for mounting (same size and thread as original shafts)
• Memory retention (presets and other user settings) more than 40 years with power disconnected.
• 3 RCA jacks for left channel, right channel and sub-woofer line outs.
• 3.5 mm phone jack for input from iPod, satellite radio or MP3 player.
• Switch selectable for 1,2,3 or 4 speakers.
• Switch selectable for North America or Europe mode.
• Includes a 6 foot 3.5mm male-to-male auxiliary cable with every radio.
• Bluetooth 3.0 EDR compliant.
• Built in microphone for HFP (hands-free profile)
• HSP, A2DP, AVRCP profiles supported.
• Programmable audio equalizer.
• Place/answer calls or stream your favorite programs while maintaining original appearance!
• Each radio comes with a detailed instruction booklet.
• Designed & Manufactured in the USA
• 12-Volt Negative Ground

REAR OF UNIT
