The new comfort class
Just demanding.

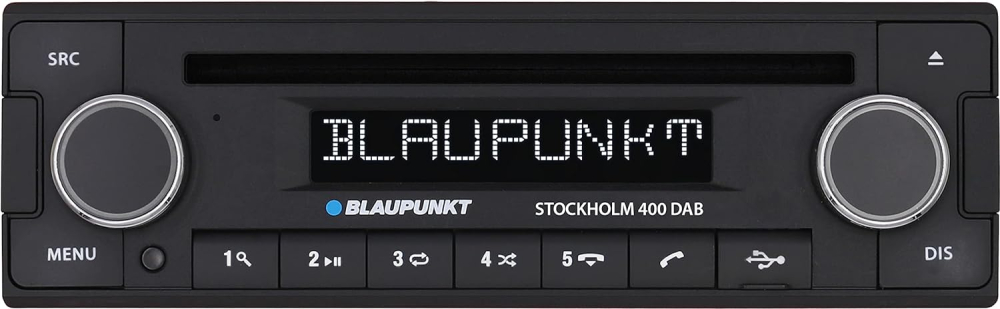

You have to bring your own music, the Stockholm 400 DAB doesn’t care about anything else. With a USB port on the front of the device and an audio input on the back, as well as a CD player, nothing is left to be desired. It goes without saying that the device comes with a wealth of other comfort features such as DAB+ tuner, Bluetooth for telephony and audio streaming, Apple iPod support, input for connection to a steering wheel remote control and multicolor lighting.

FEATURES

• High-End CODEM IV High-End World Tuner
• FM, AM, DAB, DAB+ tuner with PS, AF, REG, EON, RT, CT, PTY, TA, Service following, DLS
• USB front, rear AUX CD, CD-R, CD-RW MP2, MP3, WMA, FLAC, M4A/ AAC, WAV Support
• Apple iPod Support
• Bluetooth telephony via international or external microphone
• Audio streaming with ID3 title display
• Access to voice assistants (Siri, Google, Alexa)
• Wake-up on call Phonebook access
• Sound Presets Loudness 4-channel preamp output + 2 sub-out
• 4 x 50 watts
• Multi Colour (7 colours)
• DIM function
• Persistent memory
• SWC input (analog)

RADIO TUNER

• Tuner type: High-end automotive tuner Blaupunkt CODEM
• Frequency bands: FM, AM, DAB, DAB+
• FM frequency band: 87.5 - 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174.928- 239.200 MHz)
• Number of station presets: FM1, FM2, FMT (15x FM), AM1 (5x AM), DAB1-3 (15x DAB)
• Station storage levels can be deactivated: FM2, FMT, AM, DAB2, DAB3
• Channel display (PS)
• Radiotext
• FM/ DAB RDS Time (CT)
• Travelstore/ Memory Travelstore: (5x FMT)
• Band Scan + Preset Scan FM/ DAB
• Sensitivity (FM): Two levels (lo/ dx)
• Noise Suppression (FM) Hi-Cut (FM): (multi-stage switchable)
• DAB-DAB Service following DAB-FM Service following
• Service Scan Ensemble / Service Change Service Browsing
• Frequency response FM (Hz) -3 dB: 30 - 15,000
• Frequency response DAB (Hz) +/- 3 dB: 20 - 20,000

MEDIA PLAYER

• AUX Rear: (3.5mm jack)
• AUX-IN activation: manual, can be deactivated in the menu
• USB front: (Type A, covered socket)
• Concealed front entrances: (USB) Compatible formatting (USB): FAT16, FAT32, exFAT
• Maximum memory size (USB): > 128 GB
• Maximum number of files / folders (USB): > 20000
• CD drive (for CDDA, CD-R, CD-RW)
• Playback formats: MP2, MP3, WMA, FLAC, M4A/ AAC, WAV
• Display options (depending on file format): ID3V2 (title, artist, Album), folder, file, playtime
• Folder & File Browsing
• Scrolling: (one-time/repetitive)
• iPod, iPhone Control: (via USB)
• Shuffle Folder/ Media Repetition Title/ Folder/ All
• Introscan

• Telephone Internal microphone
• Possibility of connecting external microphone
• Accept/reject call
• Access phone book: (max. 1000 numbers)
• Audio Streaming
• Audio Streaming ID3 Track Display: (Title, Artist, Album, Playing Time)
• Scrolling: (one-time/repetitive)
• Access to voice assistants (e.g. Siri, Google, Alexa)
• Auto wake-up on call: (when radio off + ignition on)
• Fast pairing without a PIN
• Automatic reconnection
• Bluetooth Version: 5.0 LE
• Number of paired devices: max. last 5
• Number at the same time verb.
• Devices: max. 1 Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: AAC, SBC
• Availability/support of the functions depend on the user phone/app used!

SOUND

• Equalizer: Sound presets
• Bass / treble adjustment: (+/- 7 levels)
• Balance/ Fader: (+/- 9 levels) Loudness
• Sound Presets: Rock, Pop, Classical
• Source-specific sound setting Speaker outputs (channels): 4
• Preamp outputs (channels, voltage): 4 (RCA, < 2V)
• Sub-Out (channels, voltage): 2 (RCA, < 2V, gain/frequency variable)
• Max. power: 4 x 50 watts
• Sinusoidal power at 14.4 V: 4 x 24 watts (according to DIN 45324)

GENERAL

• Display: LCD, negative, anti-reflective, wide-angle, alphanumeric + Symbols
• Lighting color display/buttons: Multi Color, 7 colors (white, green, yellow, red, purple, blue, light blue)
• Day/night mode: Yes (manual/via dimmer connection)
• Brightness: Multi-level, variable (16 levels)
• Time display HMI Languages: English, German Low standby current: (< 3.5 mA)
• Antenna inputs: FM DIN/ ISO (adapter), DAB SMB (DAB with 12V Phantom power)
• Mute Input/ Telephone Mute: (ground-active)
• Ext. hands-free microphone connection
• Variable scan time: (4, 8, 12, 16, 60s)
• Confirmation beep: (can be deactivated)
• Keypad Type: Fixed Panel
• Colour panel/décor ring: black/black
• Software Update: via USB Permanent Memory: (Settings & Presets)
• Demo Mode
• Weight: approx. 1.45 kg
• Dimensions: housing 52 x 178 x 170mm, front 188 x 58mm (H x W x D)
• Operating voltage: 10.5 - 14.4 V
• Power consumption: operating: < 10A, 10 sec after shutdown ACC: < 3.5 Ma

INCLUDED PARTS

• External BT Microphone: (5 104 020 001 001)
• Unlocking tool
• Connection cable (ISO A, B)
• Antenna adapter (DIN/ ISO)
